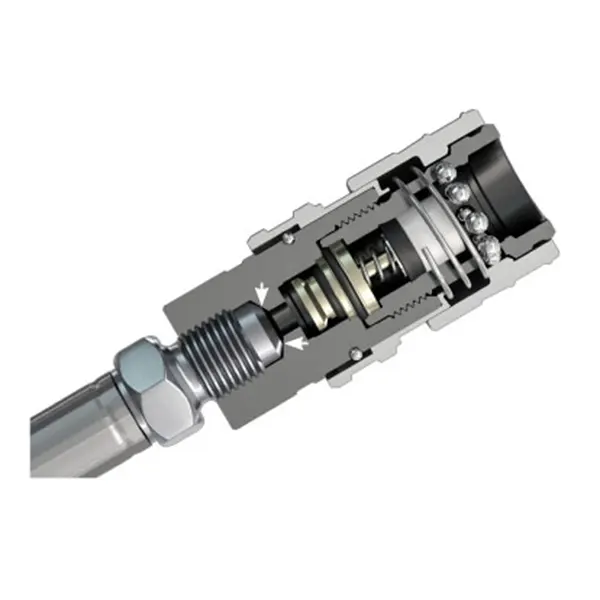

Cejn Ab – Nipple Female 101166741 – (101166741)
$190.44
Shell Material Number: 1002769148
UOM: EA
LEAD TIME: 30 Days
UNSPSC: 27121701
Cejn Ab Nipple Female 101166741 (101166741). Part Name Nipple Material Stainless Steel Additional Information: Type Thread Female Connection G 1/4 In Length 51.2 Mm Diameter 24.5 Mm Size Hexagon 22 Mm Torque 40 To 50 N.M Sealing Method Cms* Dia Nominal Flow 2.5 Mm Capacity Flow 6.0 L/Min Pressure Range Working 150 To 300 Mpa Temperature Range -30 To +100 °C Mat Coupling Hardened Stainless Steel Mat Seal Nbr
Description
Shell Material Number: 1002769148
UOM: EA
LEAD TIME: 30 Days
UNSPSC: 27121701
Cejn Ab Nipple Female 101166741 (101166741). Part Name Nipple Material Stainless Steel Additional Information: Type Thread Female Connection G 1/4 In Length 51.2 Mm Diameter 24.5 Mm Size Hexagon 22 Mm Torque 40 To 50 N.M Sealing Method Cms* Dia Nominal Flow 2.5 Mm Capacity Flow 6.0 L/Min Pressure Range Working 150 To 300 Mpa Temperature Range -30 To +100 °C Mat Coupling Hardened Stainless Steel Mat Seal Nbr
Brand
CEJN AB
