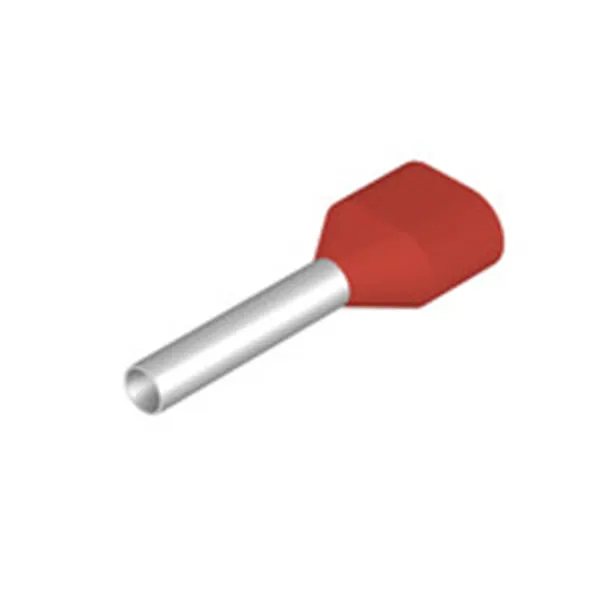

Weidmueller – Ferrule Twin Wire End – (H1,5/20 ZH R SV)
$81.71
Shell Material Number: 1002360011
UOM: EA
LEAD TIME: 30 Days
UNSPSC: 31163102
Weidmueller Ferrule Twin Wire End (H1,5/20 Zh R Sv). Connectors Cable End Crimp Type Twin Wire End Ferrule Insulation Insulated Colour Insulation Red Cross Section Conductor 1.5 Mm² Dimensions Lg 0.787 In Lg 20 Mm Height Collar 6.5 Mm Width Collar 3.6 Mm Contact Surface Diameter 2.2 Mm Contact Surface Length 12 Mm Mat Sleeve Metal Mat Collar Plastic Thickness Metal 0.15 Mm Thickness Collar 0.3 Mm Strip Length 15 Mm Wire Conn Cross Section Awg 16 Approvals Rohs Packing Multipack Bag Form Of Supply Pack Of 500 Pcs Manufacturer Weidmueller Manufacturer Part Number 9004920000 Certificate Required (Sdrl) L14 – Certificate Of Compliance
Description
Shell Material Number: 1002360011
UOM: EA
LEAD TIME: 30 Days
UNSPSC: 31163102
Weidmueller Ferrule Twin Wire End (H1,5/20 Zh R Sv). Connectors Cable End Crimp Type Twin Wire End Ferrule Insulation Insulated Colour Insulation Red Cross Section Conductor 1.5 Mm² Dimensions Lg 0.787 In Lg 20 Mm Height Collar 6.5 Mm Width Collar 3.6 Mm Contact Surface Diameter 2.2 Mm Contact Surface Length 12 Mm Mat Sleeve Metal Mat Collar Plastic Thickness Metal 0.15 Mm Thickness Collar 0.3 Mm Strip Length 15 Mm Wire Conn Cross Section Awg 16 Approvals Rohs Packing Multipack Bag Form Of Supply Pack Of 500 Pcs Manufacturer Weidmueller Manufacturer Part Number 9004920000 Certificate Required (Sdrl) L14 – Certificate Of Compliance
Brand
WEIDMUELLER
