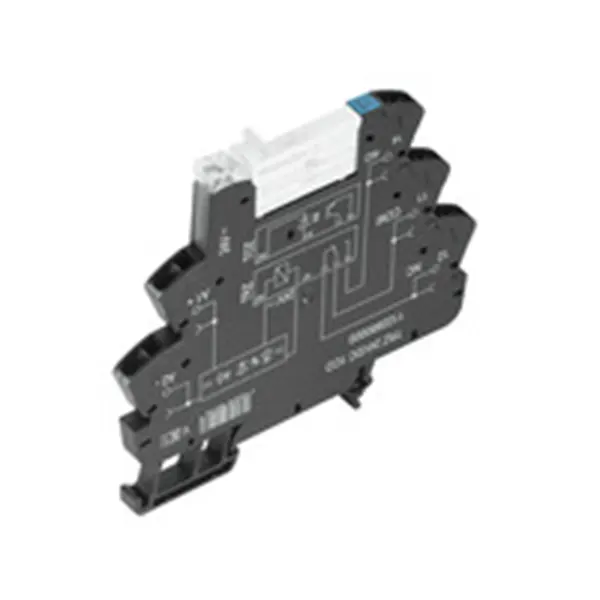

Weidmueller – Relay Microseries Mrz – (TRZ 24VDC 1CO)

Description

Shell Material Number: 1001628537
UOM: EA
LEAD TIME: 30 Days
UNSPSC: 39122300

Weidmueller Relay Microseries Mrz (Trz 24Vdc 1Co). Relays Electrical Voltage 24 Vdc Number Contacts 1 Type Termseries Dimension Hgt 90.5 X Wd 6.4 X Dp 87.8 Mm Temperature Range Operating -45 To +60 °C Relative Humidity 5 To 95 % At 40 °C Rated Switching 250 Vac Voltage Switching 250 Vac (Maximum) 250 Vdc (Maximum) Continuous Current 6 A Inrush Current 20 A Per 20 Ms Surge Voltage Category Iii Standard Din En 50178 Type Mounting Din Rail Contact Configuration Spdt Manufacturer Old Part Number Mrz 24Vdc 1Co With Coupler Certificate Required (Sdrl)   L14 – Certificate Of Compliance Equipment Hydraulic System Control Panel A & B Equipment Manufacturer Frank Mohn Fusa As Equipment Model Number 8112019 Equipment Part Number A37682 Equipment Serial Number A25691A25692 Equipment Tag Number Hd05-Ucp-01Hd05-Ucp-02 Drawing Number 2000-S0600-J01-00001 Position Number 63
